2. Introduction

The unified symmetrical theory of DNA sequences, also known as Z-curve theory, is a systematic method for analyzing DNA sequences through geometric representations. Rooted in group theory, this approach maps any nucleic sequence to a unique three-dimensional curve, enabling comprehensive analysis of nucleotide distributions and spatial configurations. As an efficient feature extraction framework, Z-curve theory has been widely adopted in bioinformatics for genomic functional region identification (e.g., coding genes, promoters, replication origins, horizontal gene transfer islands), nucleosome protein-DNA interaction studies, protein-non-coding RNA binding analysis.

Despite its broad impact on international bioinformatics research, existing implementations remain fragmented across specialized tools. To address this gap, the Tianjin University BioInformatics Center (TUBIC) developed ZcurveHub – a trinity platform integrating:

2.1. Main Functions

ZcurveHub mainly integrates 4 basic functions :

  • Genome Visualization with Z-curves
    Generate Z-curves and their derivatives (e.g., GC disparity, CpG profile) from nucleotide sequences, with customizable visualization displayed in 2D or 3D. Supports FASTA and GenBank formats. The following table lists the main curve types provided by ZcurveHub:

    Name

    Mathematical Expression

    Python API

    CLT Code

    RY disparity

    \(x_{n}=(A_{n}+G_{n})-(C_{n}+T_{n})\)

    ZcurvePlotter.RY_disparity

    RY

    MK disparity

    \(y_{n}=(A_{n}+C_{n})-(G_{n}+T_{n})\)

    ZcurvePlotter.MK_disparity

    MK

    WS disparity

    \(z_{n}=(A_{n}+T_{n})-(G_{n}+C_{n})\)

    ZcurvePlotter.WS_disparity

    WS

    AT disparity

    \(d_{\rm AT}(n)=A_{n}-T_{n}\)

    ZcurvePlotter.AT_disparity

    AT

    GC disparity

    \(d_{\rm GC}(n)=G_{n}-C_{n}\)

    ZcurvePlotter.GC_disparity

    GC

    x’ curve

    \(x_{n}^{'}=x_{n} - kn\)

    ZcurvePlotter.x_prime_curve

    XP

    y’ curve

    \(y_{n}^{'}=y_{n} - kn\)

    ZcurvePlotter.y_prime_curve

    YP

    z’ curve

    \(z_{n}^{'}=z_{n} - kn\)

    ZcurvePlotter.z_prime_curve

    ZP

    AT’ curve

    \(d_{\rm AT}^{'}(n)=d_{\rm AT}(n) - kn\)

    ZcurvePlotter.AT_prime_curve

    AP

    GC’ curve

    \(d_{\rm GC}^{'}(n)=d_{\rm GC}(n) - kn\)

    ZcurvePlotter.GC_prime_curve

    GP

    CpG profile

    \(z_{n}=2{CpG}_{n} - (k + 1)n\)

    ZcurvePlotter.CpG_prime_curve

    CG

  • Feature Extraction and Selection
    Extract and select features using Z-curve parameters more flexibly compared to non-standalone modules integrated into other softwares, and explores its powerful application in gene prediction, promoter classification, replication origin recognition, etc., with machine learning or deep learning. The following table lists the calculation methods of Z-curve transformation provided by ZcurveHub:

    Name

    Mathematical Expression

    Python API

    Digit

    Mononucleotide Z-curve

    \(x=(a+g)-(c+t)\)
    \(y=(a+c)-(g+t)\)
    \(z=(a+t)-(g+c)\)

    ZcurveEncoder.mononucl_transform

    \(3\)

    Dinucleotide Z-curve

    \(x^{\rm N}=[p({\rm NA})+p({\rm NG})]-[p({\rm NC})+p({\rm NT})]\)
    \(y^{\rm N}=[p({\rm NA})+p({\rm NC})]-[p({\rm NG})+p({\rm NT})]\)
    \(z^{\rm N}=[p({\rm NA})+p({\rm NT})]-[p({\rm NG})+p({\rm NC})]\)

    ZcurveEncoder.dinucl_transform

    \(12\)

    Trinucleotide Z-curve

    \(x^{\rm XY}=[p({\rm XYA})+p({\rm XYG})]-[p({\rm XYC})+p({\rm XYT})]\)
    \(y^{\rm XY}=[p({\rm XYA})+p({\rm XYC})]-[p({\rm XYG})+p({\rm XYT})]\)
    \(z^{\rm XY}=[p({\rm XYA})+p({\rm XYT})]-[p({\rm XYG})+p({\rm XYC})]\)

    ZcurveEncoder.trinucl_transform

    \(48\)

    Mononucleotide Phasic Z-curve

    \(x_i=(a_i+g_i)-(c_i+t_i)\)
    \(y_i=(a_i+c_i)-(g_i+t_i)\)
    \(z_i=(a_i+t_i)-(g_i+c_i)\)

    ZcurveEncoder.mononucl_phase_transform

    \(3i_{\rm max}\)

    Dinucleotide Phasic Z-curve

    \(x_i^{\rm N}=[p_i({\rm NA})+p_i({\rm NG})]-[p_i({\rm NC})+p_i({\rm NT})]\)
    \(y_i^{\rm N}=[p_i({\rm NA})+p_i({\rm NC})]-[p_i({\rm NG})+p_i({\rm NT})]\)
    \(z_i^{\rm N}=[p_i({\rm NA})+p_i({\rm NT})]-[p_i({\rm NG})+p_i({\rm NC})]\)

    ZcurveEncoder.dinucl_phase_transform

    \(12i_{\rm max}\)

    Trinucleotide Phasic Z-curve

    \(x_i^{\rm XY}=[p_i({\rm XYA})+p_i({\rm XYG})]-[p_i({\rm XYC})+p_i({\rm XYT})]\)
    \(y_i^{\rm XY}=[p_i({\rm XYA})+p_i({\rm XYC})]-[p_i({\rm XYG})+p_i({\rm XYT})]\)
    \(z_i^{\rm XY}=[p_i({\rm XYA})+p_i({\rm XYT})]-[p_i({\rm XYG})+p_i({\rm XYC})]\)

    ZcurveEncoder.trinucl_phase_transform

    \(48i_{\rm max}\)

    K-nucleotide Phasic Z-curve

    \(x_i^{\rm N_{k-1}}=[p_i({\rm N_{k-1}A})+p_i({\rm N_{k-1}G})]-[p_i({\rm N_{k-1}C})+p_i({\rm N_{k-1}T})]\)
    \(y_i^{\rm N_{k-1}}=[p_i({\rm N_{k-1}A})+p_i({\rm N_{k-1}C})]-[p_i({\rm N_{k-1}G})+p_i({\rm N_{k-1}T})]\)
    \(z_i^{\rm N_{k-1}}=[p_i({\rm N_{k-1}A})+p_i({\rm N_{k-1}T})]-[p_i({\rm N_{k-1}G})+p_i({\rm N_{k-1}C})]\)

    ZcurveEncoder.k_nucl_phase_transform

    \(3·4^{k-1}i_{\rm max}\)

    * The value of \(k\) and \(i_{\rm max}\) varies in the integer range [1, 6].

  • Accurate Curve Segmentation
    Detect critical structural boundaries using genome order index algorithm, identifying candidate regions for replication origins, genomic islands, or isochores and CpG islands in eukaryotic genomes. The following table lists the order index for each segmentation algorithm:

    Segmentation Target

    Order Index S(P)

    Application

    Z-curve

    \(S({\rm P})=a^2+g^2+c^2+t^2\)

    Replication Origin Recognition

    RY disparity

    \(S({\rm P})=(a^2+g^2)+(c^2+t^2)\)

    Mitochondrial rRNA Region Search

    MK disparity

    \(S({\rm P})=(a^2+c^2)+(g^2+t^2)\)

    Mitochondrial \(\rm O_L\) Recognition

    WS disparity

    \(S({\rm P})=(a^2+t^2)+(g^2+c^2)\)

    Genome Island / Isochore Search

    AT disparity

    \(S({\rm P})=a^2+t^2\)

    GC disparity

    \(S({\rm P})=g^2+c^2\)

    Leading/Lagging Chain search

    CpG profile

    \(S({\rm P})=[p_n({\rm CpG})]^2+[1-p_n({\rm CpG})]^2\)

    CpG Island Search

  • Build Classification Models
    Construct nucleic acid sequence classifier with biological function based on machine learning framework, high-precision protein gene recognizers for specific species taxa of prokaryotes, which is very useful when studying resequenced species or newly sequenced that are closely related.

2.2. Technical Highlights

  1. High-Performance Hybrid Architecture

    • C/C++ Acceleration
      Core algorithmic modules are implemented natively in C/C++ and seamlessly integrated with Python via dynamic libraries (DLL/SO), where C++ classes and functions are wrapped into Python-callable objects using native Python C/C++ APIs, balancing development efficiency with runtime performance. Both of the Python package and the Flask backend of web service are developed based on the C++ core.

    • Vivid Visualization
      The visualization module of the network service is written using React-plotly.js and graphically accelerated based on WebGL to obtain good user interactivity and smooth display, facilitating real-time adjustment of parameters to achieve the best visualization effect. The visualization module of CLT is written in Matplotlib and has more flexible adjustable parameters.

    • Parallel Computing
      The Python package allows multi-threaded parallelization, achieving 4-6x speedup for large-scale genomic data processing (e.g., 765-bit Z-curve parameters generation for S. cerevisiae’s CDS sequences takes 0.3 seconds vs. 1.3 seconds in single-threaded mode)

  2. Cross-Paradigm Interfaces

    • Web Service Interfaces
      User-friendly Web interface enables you to quickly analyze data using cloud resources without installation, making it easy for beginners.

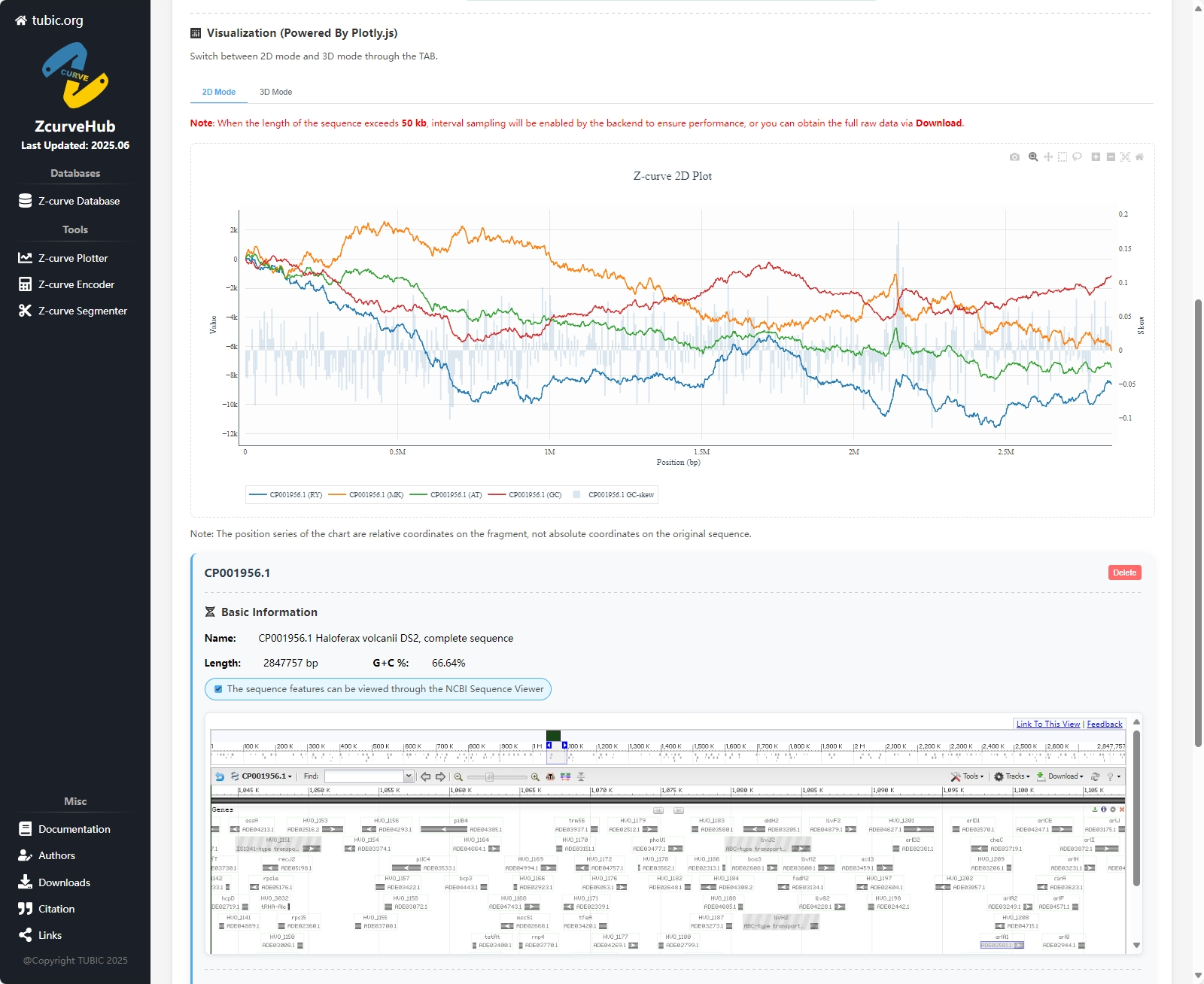

    • Web Service Interface

    • Command-Line Interface
      Streamlined CLI commands for batch processing and pipeline integration, ideal for bioinformatics workflows, e.g.

      zcurve-encoder -f example.fa -s settings.json -o features.csv

    • Python API
      Object-oriented interfaces for developers, enabling customizable workflows, e.g.

      # Init ZcurveEncoder
from ZcurvePy import BatchZcurveEncoder
hyper_params = [ ... ]
encoder = BatchZcurveEncoder(hyper_params, n_jobs=8)
# Load and process data
from Bio.SeqIO import parse
records = parse("example.fa", "fasta")
features = encoder(records)

  3. Ecosystem Integration

    • Data Connectivity
      Built-in integration with Biopython modules for direct sequence retrieval from NCBI databases, with automated parsing of FASTA/GenBank formats.

    • ML Compatibility
      Extracted Z-curve features are directly compatible with scikit-learn (traditional ML) and PyTorch (deep learning), including pre-trained models (e.g., Ori-FinderH, Nmix).

    • Visualization Tools
      Export Z-curve trajectories as Matplotlib static plots (e.g., *.png)or Plotly interactive HTML.
