7. Commandline

In order to meet the needs of more users at more scene, we also equipped ZcurvePy with a series of command line programs that are basically consistent with APIs and Web Tools functionality. In some ways, command line programs are more powerful than API interfaces, such as convenient visual interfaces and easy-to-write setting files as JSON.

7.1. Z-curve Plotter

This is the executable command line version of ZcurvePlotter, which integrates sequence download, cropping, complementary sequence transformation, multi-curve visualization, and more.

Usage:
2D-mode :

zcurve-plotter [-h] [-f FASTA] [-g GENBANK] [-a ACCESSION] -s SETTINGS [-o OUTPUT]  [-p PNG] [-v SHOW]

3D-mode :

zcurve-plotter-3d [-h] [-f FASTA] [-g GENBANK] [-a ACCESSION] -s SETTINGS [-o OUTPUT]  [-p PNG] [-v SHOW]

Args:

Short Arg

Long Arg

Discription

Example

-h

–help

show this help message and exit

-h

-f

–fasta

input genome files as FASTA format (*.fa; *.fasta; *.fna)

-f genome.fa

-g

–genbank

input genome files as GenBank format (*.gb; *.gbk; *.gbff)

-g genome.gb

-a

–accession

input as NCBI accession number (comma-splited; *.txt)

-a NC_000854.2

-s

–settings

external setting file as JSON format (*.json)

-s settings.json

-o

–output

output data file of all curves as JSON (*.json)

-o curves.json

-p

–png

output graphic file as PNG picture (*.png)

-p picture.png

-v

–show

show graphic user interface or not (default: False)

-v True

JSON Setting File

{
    /*
     * All of ZcurvePy's command line programs can share a single settings.json,
     * so the application should be specifed as "plotter" at first.
     */
    "plotter": [
        /* Specify parameters for each drawing task in turn through a list. */
        { // The first nucleic sequence to plot
            "start": 114514,  // Start plotting point
            "stop": 1919810,  // Stop plotting point
            "comp": true, // Plot complement sequence
            "window": 1000, // Window size
            "intv": 10, // Function fetch point interval
            "curve2d": "RY,MK,ZP",  // CTL curve codes
            /* You can specify multiple 2D curves to draw for
             * each sequence and display them in a single image.
             * The curve code is shown in the table below.
             */
            "curve3d": "RY:MK:ZP"  // CTL curve codes
            /* You can choose three of the 11 curves as the x
             * component, the y component and the z component.
             *  The curve code is shown in the table below.
             */
        }, { // The second nucleic sequence to plot
            ...
        },
        ...
    ]
}

Note:

  1. Param ‘intv’ must be given or the visualizing module will throw an ‘Divided By Zero’ exception.

  2. Param ‘curve2d’ must be given for command zcurve-plotter or a error will happen;
    Param ‘curve3d’ must be given for command zcurve=plotter-3d or a error will happen.

  3. If start is greater than end, the program defaults the topological nature of the sequence to a ring and rotates the sequence to the new starting point.

  4. The x-value series of the chart are relative coordinates on the fragment, not absolute coordinates on the original sequence.

No.

Name

Mathematical Expression

Curve Code

1

RY disparity

\(x_{n}=(A_{n}+G_{n})-(C_{n}+T_{n}), n=1,2,3...N\)

RY

2

MK disparity

\(y_{n}=(A_{n}+C_{n})-(G_{n}+T_{n}), n=1,2,3...N\)

MK

3

WS disparity

\(z_{n}=(A_{n}+T_{n})-(G_{n}+C_{n}), n=1,2,3...N\)

WS

4

AT disparity

\(d_{\rm AT}(n)=A_{n}-T_{n}, n=1,2,3...N\)

AT

5

GC disparity

\(d_{\rm GC}(n)=G_{n}-C_{n}, n=1,2,3...N\)

GC

6

x’ curve

\(x_{n}^{'}=x_{n} - kn, n=1,2,3...N\)

XP

7

y’ curve

\(y_{n}^{'}=y_{n} - kn, n=1,2,3...N\)

YP

8

z’ curve

\(z_{n}^{'}=z_{n} - kn, n=1,2,3...N\)

ZP

9

AT’ curve

\(d_{\rm AT}^{'}(n)=d_{\rm AT}(n) - kn, n=1,2,3...N\)

AP

10

GC’ curve

\(d_{\rm GC}^{'}(n)=d_{\rm GC}(n) - kn, n=1,2,3...N\)

GP

11

CpG profile

\(z_{n}=2{CpG}_{n} - (k + 1)n, n=1,2,3...N\)

CG

Examples:

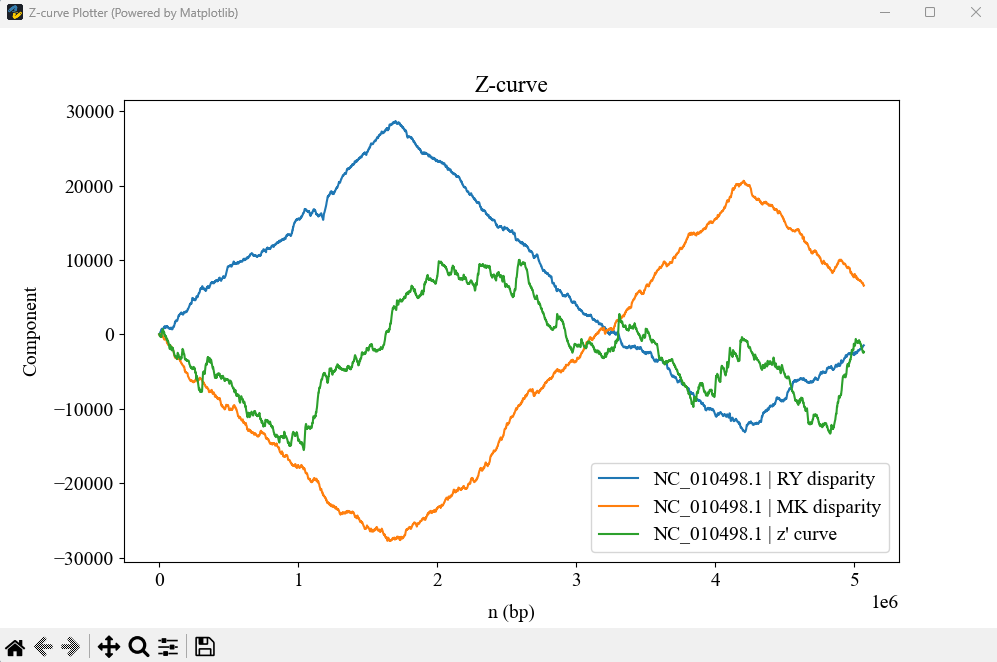

zcurve-plotter -a NC_010498.1 -s settings.json -o output.json -p curve.png -v True

Z-curve Plotter Example

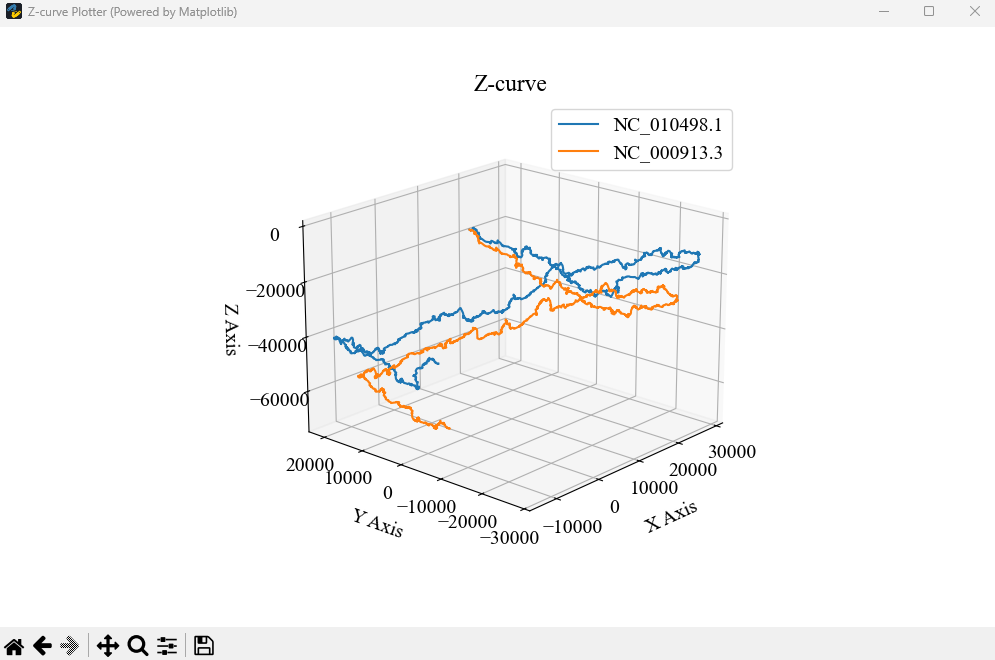

zcurve-plotter-3d -a NC_010498.1,NC_000913.3 -s settings.json -o output.json -p curve.png -v True

Z-curve Plotter Example

7.2. Z-curve Encoder

This is the executable command line version of ZcurveEncoder, which also enables to download sequences from internet.

zcurve-encoder [-h] [-f FASTA] [-g GENBANK] [-a ACCESSION] [-e EXTRACT] [-s SETTING] [-o OUTPUT]

Args:

Short Arg

Long Arg

Discription

Example

-h

–help

show this help message and exit

-h

-f

–fasta

input genome files as FASTA format (*.fa; *.fasta; *.fna)

-f genome.fa

-g

–genbank

input genome files as GenBank format (*.gb; *.gbk; *.gbff)

-g genome.gb

-a

–accession

input as NCBI accession number (comma-splited; *.txt)

-a NC_000854.2

-e

–extract

extract protein genes as samples from annotated files

-e True

-s

–setting

hyper parameters setting file as json (*.json)

-s setting.json

-o

–output

output z-curve parameters file as comma-splited table (*.csv)

-o params.csv

JSON Setting File

{
    /*
     * All of ZcurvePy's command line programs can share a single settings.json,
     * so the application should be specifed as "encoder" at first.
     */
    "encoder": {
        // Hyper-parameters for variable window Z-curve
        // Corresponding to parameter 'hyper_params' of ZcurvePy.BatchZcurveEncoder
        "hyper_params": [
            { // The first layer of Z-curve transformation
                "k": 1,         // The length of k-nucleotidemust
                                // Must be given >= 1, and preferably not more than 6. (Default: 1)
                "phase": 3,     // The number of phases (3 for CDS)
                                // Must be given >= 1, and preferably not more than 6. (Default: 3)
                "freq": true,   // Do frequencization or not (default:False)
                "local": true   // Use local mode to do frequencization
            },
            { // The second layer of Z-curve transformation
                "k": 2,
                "phase": 3,
                "freq": true,
                "local": true
            },
            ...
        ],
        "n_jobs": 8 // specifies the number of threads to use.
                    // If it is set to a negative value or 0,
                    // it will be reset to the number of CPU cores of the machine. (Default: -1)
    }
}

Example:

zcurve-encoder -a NC_000854.2 -s settings.json -o params.csv -e True

7.3. Z-curve Segmenter

zcurve-segmenter [-h] [-f FASTA] [-g GENBANK] [-a ACCESSION] -m MODE [-t HALTING] [-l MINLEN] [-d MAXDEPTH] -o OUTPUT [-p PNG] [-v SHOW]

Args:

Short Arg

Long Arg

Discription

Example

-h

–help

show this help message and exit

-h

-f

–fasta

input genome files as FASTA format (*.fa; *.fasta; *.fna)

-f genome.fa

-g

–genbank

input genome files as GenBank format (*.gb; *.gbk; *.gbff)

-g genome.gb

-a

–accession

input as NCBI accession number (comma-splited; *.txt)

-a NC_000854.2

-s

–start

start point of the subsequence to be segmented. (Default: 0)

-s 50000

-e

–end

end point of the subsequence to be segmented. (Default: Length)

-e 100000

-m

–mode

choose the mode of Z-curve Segmenter (Default: ‘GN’)

-m WS

-t

–halting

halting parameter for the segmenting recursion (Default: 100)

-t 100

-l

–minlen

the min length between two segmentation point (Default: 3000 bp)

-l 3000

-d

–maxdepth

the max depth of the segmenting recursion (Default: 9999)

-d 1000

-o

–output

output segmentation points as comma-splited table (*.csv)

-o results.csv

-p

–png

output graphic files as PNG picture (*.png)

-p plot.png

-v

–show

show the curve and segmentation points (Default: False)

-v True

Note:

  1. If start is greater than end, the program defaults the topological nature of the sequence to a ring and rotates the sequence to the new starting point.

  2. The x-value series of the chart are relative coordinates on the original sequence.

The Z-curve segmentation method was based on genome order index, and it is a binary iterative algorithm. The segment points in each iteration are calculated by the following formula:

\(n_{\rm seg}={\rm argmax}\{S({\rm P}_n) + S({\rm Q}_n) - S({\rm P}_n + {\rm Q}_n)\},n=1,2,3...,N\)

In the above formula, P represents the left subsequence at point \(N\) of a dna sequence of length \(n\), and Q represents the right subsequence. We provide 7 ways to calculate S:

Segmentation Target

Order Index S(P)

CLT Code

Z-curve

\(S({\rm P})=a^2+g^2+c^2+t^2\)

GN

RY disparity

\(S({\rm P})=(a^2+g^2)+(c^2+t^2)\)

RY

MK disparity

\(S({\rm P})=(a^2+c^2)+(g^2+t^2)\)

MK

WS disparity

\(S({\rm P})=(a^2+t^2)+(g^2+c^2)\)

WS

AT disparity

\(S({\rm P})=a^2+t^2\)

AT

GC disparity

\(S({\rm P})=g^2+c^2\)

GC

CpG disparity

\(S({\rm P})=[p_n({\rm CpG})]^2+[1-p_n({\rm CpG})]^2\)

CG

Example:

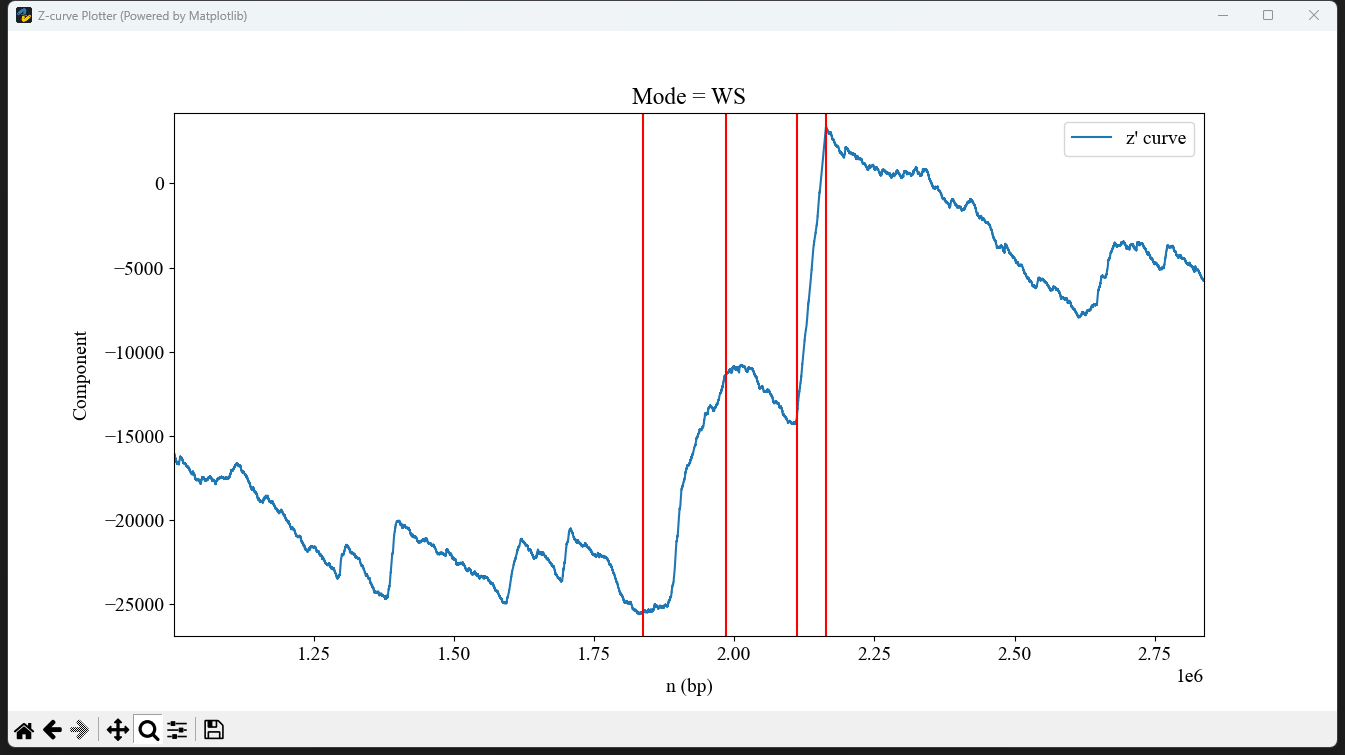

zcurve-segmenter -a CP001956.1 -m WS -l 50000 -o seg_points.csv -v True

Z-curve Segmenter Example
